Honda D15 D16 - Stage 3 - Turbo Kit

€1,980.00
Tax included Shipping 24/48h

Stage 3 Turbo kit: +150hp at 1.4bar

For Honda engines: D15 D16 1.5L 16S and 1.6L 16S

Honda Civic EG4, EG8, EK3, CRX, VTi, ESi, ...

Manifold type
Wastegate
turbo type
Quantity
1 Items In Stock

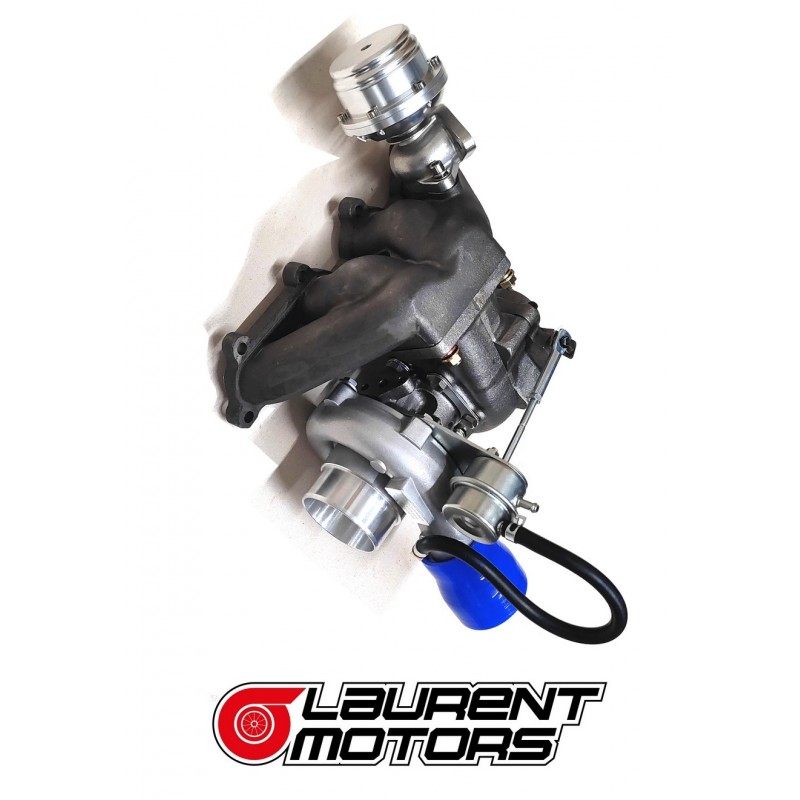

Turbo Kit HONDA D - 1.5L 1.6L - STAGE 3

+150cv à 1.4b

Turbo kit for Honda : D15 D16 1.5L 16S et 1.6L 16S

Honda Civic EG4, EG8, EK3, CRX, VTi, ESi, ...

Easy to assemble, this standard kit is perfect for preparation at a lower cost with little mechanical work to do. Simple settings.

Have fun!

- Replace your gauges in your kit with those from the ProSport range. To do this, simply add the Prosport option to your basket.

- Replace your pressure gauges in your kit with those from the digital ProSport EVO range including AFR Wideband and its 0-5V Bosch LSU 4.9 sensor (essential for monitoring your combustion). To do this, simply add the Prosport EVO option to your basket.

List of products in Stage 3 (+ 150 hp):

- Exhaust manifold T25 cast iron flange or T3 cast iron flange or specific 304l stainless steel (new)

- Turbo GT2860 GT2871 or T3/T4 adaptable or GARRETT GT3076R (see choice in the list)

- Wastegate Internal or external adaptable 38mm or external Turbosmart 38mm or external Vband 40mm Garrett GVW

- Blow off valve with its attachment to the tube

- Walbro fuel pump submerged high flow 450L/H

- Pressure fuel regulator

- Downpipe universal Vband

- Avia-hose and fittings oil for turbo

- Intercooler-front 530x170x60 (or 450x300x76 or 600x300x76 choice to specify when ordering)

- Universal intercooler tubes, stainless steel clamps and silicone hoses braided

- Turbo-pressure regulator

- Boost gauge (with T and hoses)

- Exhaust gas temperature gauge (with probe)

- Oil pressure gauge (with probe)

- Oil temperature gauge (with probe)

- Lambda-gauge (to connect to the original lambda probe)

- 4x Deatschwerks 750cc injectors

- Steel decompression plate (to be installed between 2 head gaskets)

-Detailed and illustrated instructions for mounting a turbo kit and settings (basic mechanical skills to perform the installation)

At this stage of preparation, ECU tune or the standalone ECU is essential.

The installation of our injectors requires the assembly of a B16/B18 engine injection rail.
