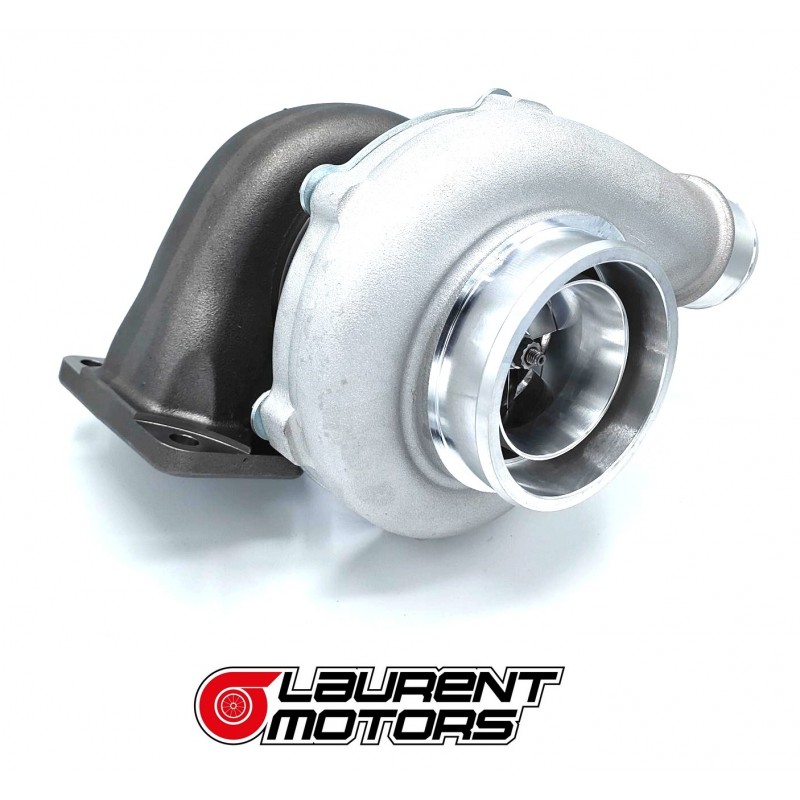

GTX3076R Gen2 - Ball bearing

€745.00
Tax included Shipping 24/48h

TURBO GTX3076R Gen II flange T3 AR0.63, AR0.82 or AR1.06 V-Band output - ceramic ball bearings

allows to mount to 600cv maxi (from 400 to 600cv)

Turbo flange (T2,T3,T4...)
AR
Quantity
1 Items available to order (8-day lead time)

GTX3076R Gen 2 turbo on ceramic ball bearings.

Greatly improves charge time thanks to its GEN 2 compressor housing compared with an oil-bearing turbo.

Can be upgraded to 600hp (from 400 to 600hp)

Exhaust manifold flange size :

T3 flange, possible variant in T4 flange or V-band flange (consult us)

Turbine casing outlet: V-band, 4-hole variant possible (consult us)

Compressor wheel, Inducer/Gearbox: 58 / 76mm

Turbine, Inducer/Gearbox: 60 / 55mm

Double-row ceramic ball bearing

Exhaust casing (Turbine) :

A/R.63 / AR63 / A/R0.63

or

A/R.82 / AR82 / A/R0.82

or

A/R1.06 / AR1.06 / A/R1.06

Oil lubrication and water cooling.

NB: Rotate the exhaust and intake housings to position the turbo correctly in your engine.


GTX3076RG2
